Animatics Smart Motor Sm23165dt

If there is a loss of drive power the brake will engage.

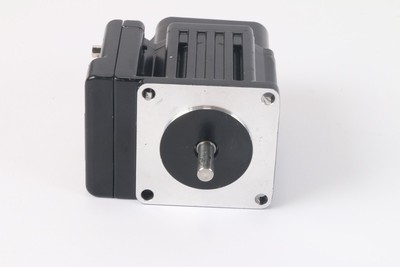

Animatics smart motor sm23165dt. Motor specifications are subject to changes without notice. Profibus is hardware specific and therefore do not attempt to install profibus firmware onto non profibus motor. This motor includes an integrated motor controller amplifier encoder and communications bus. Specifications are subject to changes without notice.

Peak torque is available for 3 seconds at a 10 duty cycle. Sm23165dt smartmotor nema 23 frameintegrated motor controls amp encoder and comshigher torque motornew. Continuous rating based on 25 c ambient temperature motor mounted to a 6x6x inch aluminum heat sink and electronics windings below maximum temperature. Click the image to download a pdf file that has specs drawings and torque curves.

Moog animatics sm23165dt the sm23165dt is a nema 23 size smartmotor is an entire servo control system built inside of a servo motor. Sm17205d options. Moog animatics smartmotor with an optional brake offers the following features. Animatics smartmotor sm23165dt servida nema 23 brushless servo servo systems co moog animatics animatics smartmotor class 5 sm23165dt sgg2 transmission moog animatics catalog smartmotor user s guide moog gmbh niederlassung memmingen motion is our passion animatics smartmotor design construction and testi ng of an electrodynamic uniaxial drives motion control animatics smart motor animatics.

Moog animatics is the leader in integrated motion control with highly innovative solution. Moog smartmotor nema23 c5 dt nema 23 smart motor smart motor moog animatics robotics. The award winning smartmotor is a complete compact and user friendly motion control system that integrates a brushless dc servo motor motion controller encoder and amplifier. Consult website and factory for latest data.

Hardware used in canopen and devicenet is the same and therefore protocol preference is by the firmware selection. Available with cds7 option power can bus and rs 232 through 7w2 for sm23165 series motors available with cds option can through db15 for motors other than sm23165 series class 6 smartmotor onboard controls allow for distributed controls across the machine. Model number autocad solidworks iges cad drawing datasheet spec firmware. Experience no loss of position once the brake is engaged.
